Cure3
UV curing with a rotating platform, heated drying, activated-carbon filtration and a lid-open interlock.

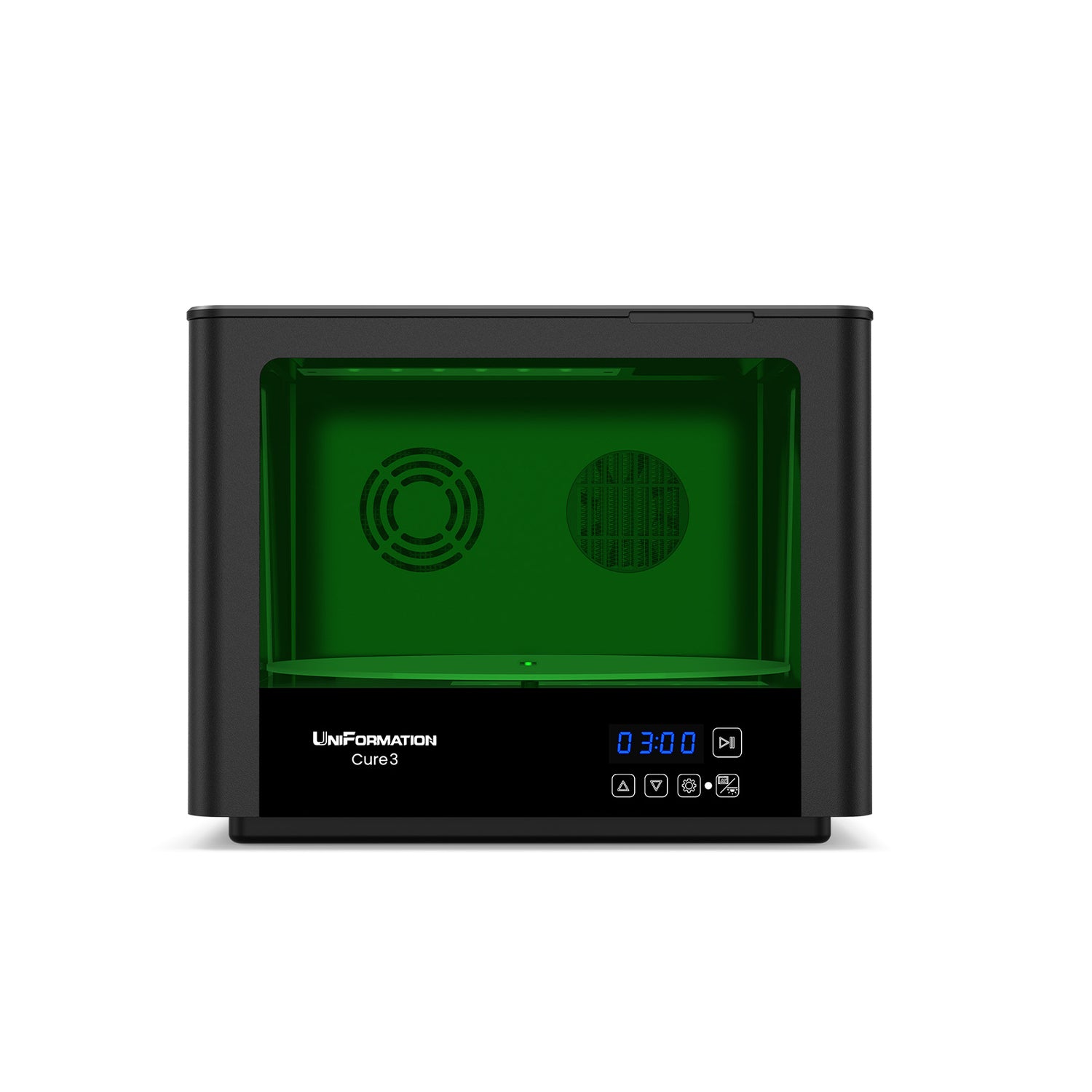

Front view
Enquire about this device
Configuration, pricing and availability are confirmed with our team.
Technical specifications
| Curing space | Ø282 × H162 mm |
|---|---|
| UV wavelength | 405 nm |
| UV LEDs | 24 LEDs / 4 strips |
| Platform | 360° rotation |
| Drying timer | 0–15 min |
| Curing timer | 0–30 min |
| Drying temperature | 45 ± 3°C — ambient-dependent |
| Drying / curing power | 150 W / 40 W |
| Interlock | Stops when the lid opens |
A closer look at Cure3
Explore drying, chamber space and the curing light arrangement.
Room for multiple models
A chamber measuring 282 mm in diameter and 162 mm in height.
Illustrative dental models
Drying before curing
A heated drying cycle with its own timer.
Illustrative dental models
Rotating platform and UV lighting
360° rotation with 24 LEDs arranged on four strips.
Illustrative dental models
Lid-open interlock
Curing pauses when the top lid is opened.
Illustrative dental models
