SPECTRA · DENTAL RESINS

Master Model resin

Dental models for laboratory planning, checking fit and presenting restorative work.

Request a quotation Technical documents

Application: Master Model resin — Application image from the catalogue

Material highlights

Defined anatomical detail
A choice of six model colours
A stable visual reference for the digital workflow

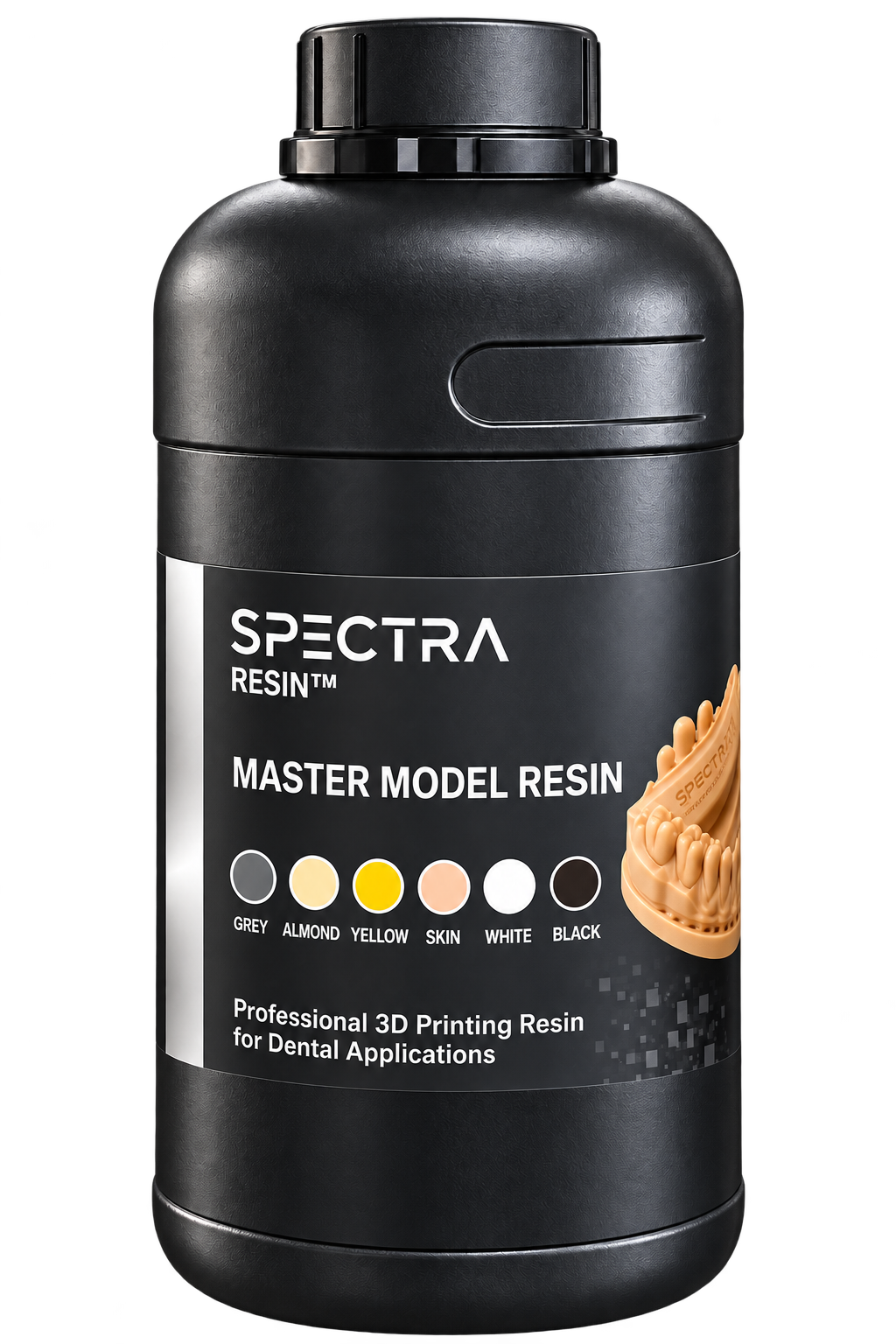

Enlarge bottle photo

SPECTRA · SHADE GUIDE

Find your shade

Select a tooth to choose your pack and quantity.

Master Model resin6 shades

Outlined teeth do not have a colour preview yet. You can still select them by name.

Colours are estimates from the supplied Spectra guide and may vary by screen. Confirm the final shade with a physical sample.

Colours and pack weights follow the catalogue; reference codes and availability are confirmed with the team.

Enquire about this resin

Technical reference

Model formulations in the technical reference are distinct. Confirm the exact Master Model formulation before selecting a print profile.

Mechanical properties

Property	Ortho Model · IPA	Pro Model	Water-Washable Ortho
Tensile strength	37.88 MPa	25.9 MPa	31.44 MPa
Flexural strength	57.91 MPa	22.2 MPa	40.82 MPa
Flexural modulus	1699.7 MPa	616.4 MPa	1091.45 MPa
Elongation at break	6.41 %	25.5 %	7.65 %
Hardness	80–88 Shore D	80–85 Shore D	80–85 Shore D

Selected reported values. Results depend on formulation and specimen conditioning. Reported mechanical values carry a ±10% tolerance; hardness is presented as a range. Testing references: ASTM D638 (tensile), D790 (flexural) and D2240 (hardness).

Reference print settings & test conditions

Catalogue reference settings for matching materials, tested on ELEGOO MARS 3. Confirm resin variant and batch, and calibrate on the actual printer; these are not ready-to-use GK3 or universal printer presets.

Property	Ortho Model · IPA	Pro Model	Water-Washable Ortho
Bottom exposure	25–35 s	20–30 s	25–35 s
Normal exposure	2.5–3.5 s	2.5–4.5 s	2.5–3.5 s

Layer height	0.05 mm
Bottom/normal lift distance	6 mm
Bottom lift speed	60 mm/min
Normal lift	80 mm/min
Retract speed	150 mm/min
Rest after retract	2–3 (unit not stated in source)
Test platform	ELEGOO MARS 3
Test screen	6.6-inch monochrome LCD
Irradiance	3,500–4,500 µW/cm²

Lift distance by screen size

Below 7 inches	6 mm
7–10 inches	8–10 mm
10.1 inches	11 mm
13.3 inches	14 mm
15 inches	15 mm

These distances apply to the conventional release-film setup described in the source. Gingiva Mask calls for a 20–30% increase in lift distance. Validate against the actual machine and film. Bottom layer count = bottom thickness ÷ layer height + 1. For 0.40 mm at 0.05 mm per layer: 9 bottom layers. Mix resin thoroughly before printing. Run a calibration specimen whenever material, printer, light output, layer height or release film changes. Check detail, fit and separation before production.

Test specimen conditions

Source test environment	23 ± 2°C
Relative humidity	50 ± 5%
Test specimen curing medium	water
Curing time per side	1 min per side
Wavelength	405 nm
Irradiance	200 mW/cm²

These are test-coupon conditions. They are not a validated clinical post-curing protocol for every SPECTRA resin.

Washing & post-curing

Select the wash medium from the exact resin instructions; the reference distinguishes IPA-cleanable materials from water-washable model resin. Remove residual liquid, dry and inspect before curing. Final properties depend on wavelength, irradiance, time and part geometry; clinical applications require their validated protocol. Follow the safety data sheet and collect contaminated wash liquid for appropriate disposal.
